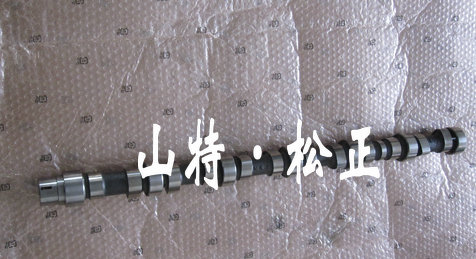

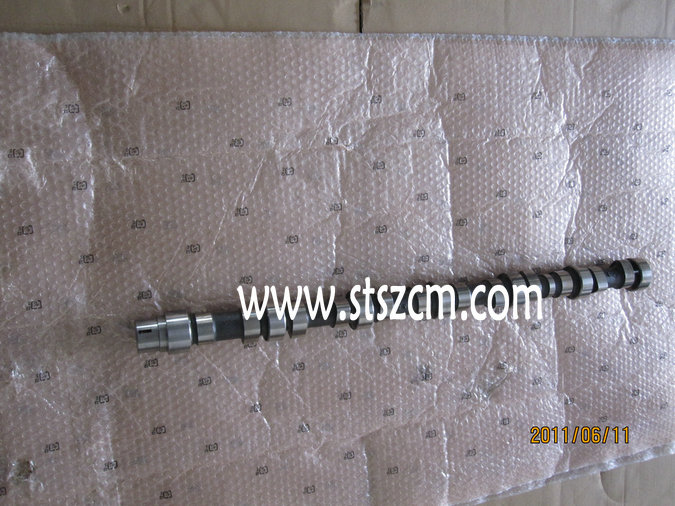

凸轮轴6732-41-1111适用于进口PC160LC-7挖掘机，发动机原装曲凸轮轴

凸轮轴6732-41-1111适用于进口PC160LC-7挖掘机，发动机原装曲凸轮轴

ENGINE AND  MOUNTING

ITEM PART NO. DESCRIPTION

1 15228087 BRACKET ASSY-REAR RH

2 15228088 BRACKET ASSY-REAR LH

3 15228043 MOUNTING-FRONT

4 103331 LOCK WASHER

5 271558 BOLT

6 271572 BOLT

7 9354243 LOCK NUT

8 15021228 DAMPER

9 9250522 SHOCK MOUNT

10 15228042 PLATE

ENGINE AIR CLEANER

ITEM PART NO. DESCRIPTION

1 9039992 ELEMENT-SAFETY

2 179837 BOLT

3 9030732 CLAMP

ENGINE AIR CLEANER MTG. PIPES AND HOSES

ITEM PART NO. DESCRIPTION

1 9204030 CLAMP

2 15228072 TUBE

3 9016648 CLAMP-T

4 9016628 HOSE

5 271558 BOLT

6 103331 LOCK WASHER

7 9233142 TUBE-NYLON

8 179887 BOLT

9 103329 LOCK WASHER

10 179795 BOLT

11 103319 LOCK WASHER

12 109084 HUT

13 9197104 ELBOW

ENGINE LUBRICATION LINES

ITEM PART NO. DESCRIPTION

1 118753 ELBOW

2 116453 ELBOW

3 116436 CONNECTOR

4 2369508 STUD-CLAMPING

ENGINE FLYWHEEL COVER GROUP PTO

ITEM PART NO. DESCRIPTION

1 15229408 POWER TAKE OFF

2 15229409 HOUSING ASSY

3 784079 PIN

4 179826 BOLT

5 103320 LOCK WASHER

6 9004541 SEAL

7 444637 PLUG （0.75IN）

8 179826 BOLT

9 15229404 GEAR-DRIVEN

10 954528 BEARING

11 907696 BEARING

12 9274893 GEAR-DRIVEN

13 9004540 SEAL

14 9195847 GEAR-DRIVE

15 15245600 SHAFT-DRIVE PTO

16 9269703 LOCK NUT

17 9414895 RING-SNAP

18 9195842 GASKET

19 15249496 WASHER-HARDENED

20 9232989 BREATHER

21 6769936 CAP-BREATHER

22 9193182 YOKE

23 433142 BOLT

24 273469 PLUG

25 179860 BOLT

26 103328 LOCK WASHER
