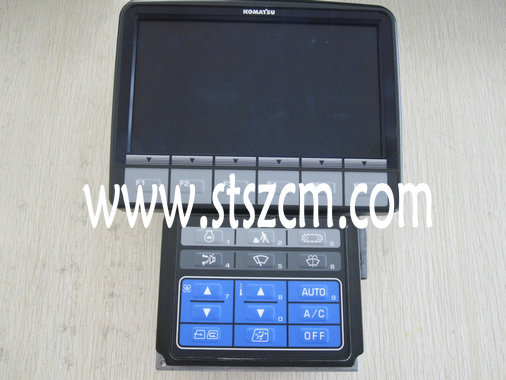

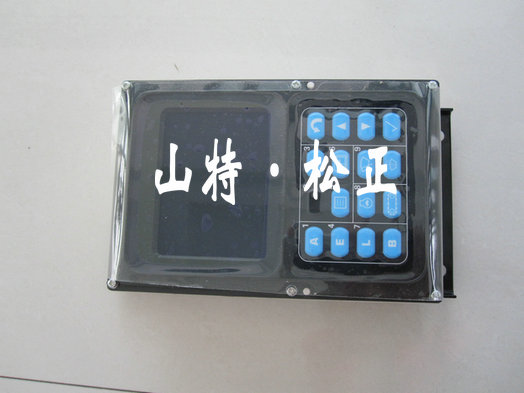

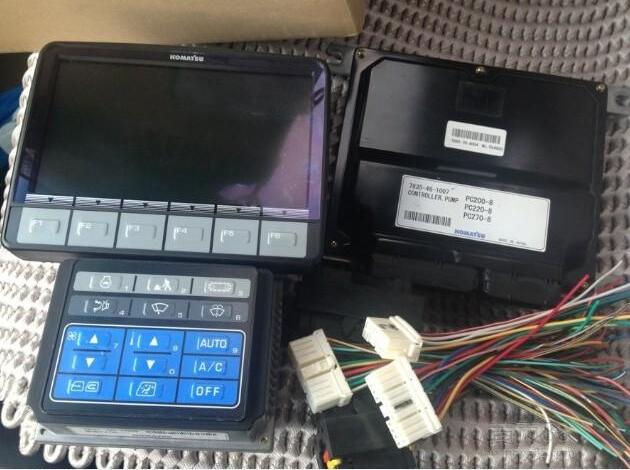

山西挖掘机PC200-8驾驶室显示屏7835-31-1004，驾驶室监控器

山西挖掘机PC200-8驾驶室显示屏7835-31-1004，驾驶室监控器

TRANSMISSION TORQUE BRAKE LINKAGE

ITEM PART NO. DESCRIPTION

1 103340 WASHER

2 9184755 CLEVIS

3 179843 BOLT

4 274208 LOCK NUT

5 9015938 CONTROL-CABLE

6 103496 PIN

7 108580 LOCK WASHER

8 103498 PIN

9 103385 PIN-COTTER

TRANS. FRONT COVER AND CONVERTER GROUP

ITEM PART NO. DESCRIPTION

1 6773186 SEAL

2 181415 BOLT

3 6768689 COVER

4 5181902 GASKET

5 23041458 BEARING

6 6770630 COVER

7 6768687 HUB

8 23041452 BEARING

9 455366 PIN DOWEL

10 6838403 RING-SNAP

11 6774703 RING-SNAP

12 23019639 TURBINE

13 6774708 NUT

14 6758485 WASHER

15 23045335 STATOR

16 6774710 PLATE

17 23041915 BEARING

18 6881830 PUMP

19 6830003 WASHER

20 9409037 BOLT

21 103322 LOCK WASHER

22 271505 NUT

23 6752849 SEAL

24 6752848 SEAL

TRANSMISSION CONVERTER HOUSING GROUP

ITEM PART NO. DESCRIPTION

1 179881 BOLT

2 103329 LOCK WASHER

3 6774735 GEAR-IDLER OIL PUMP

4 901310 BEARING

5 6755403 PIN

6 6755986 GEAR-DRIVE OIL PUMP

7 6758442 GASKET

8 6768990 COVER-PTO

9 103322 LOCK WASHER

10 179857 BOLT

11 444692 PLUG

12 444688 PLUG

13 444619 PLUG

14 273469 PLUG

15 444631 PLUG 锛

16 6779451 GASKET

17 6830021 SEAL

18 23019731 SEAL

19 6775834 SLEEVE

20 179838 BOLT

21 103321 LOCK WASHER

22 6882702 GASKET

23 903209 BEARING

24 179860 BOLT

25 6779125 FLANGE

26 23046148 HOSE ASSY

27 179837 BOLT
