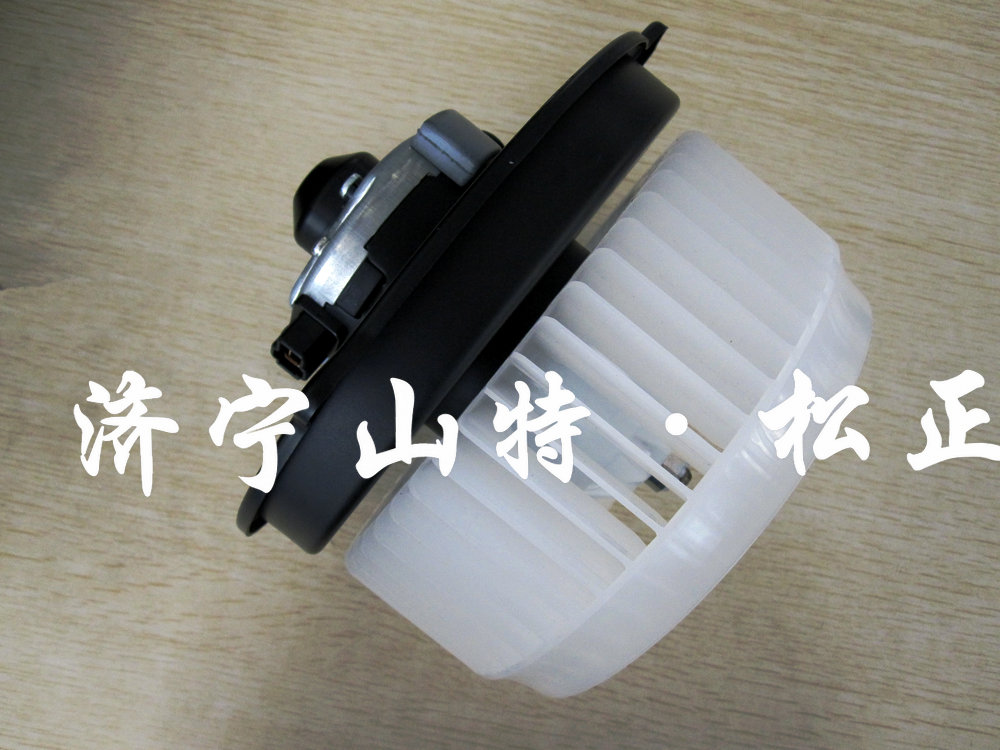

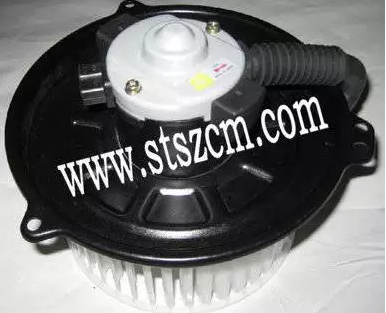

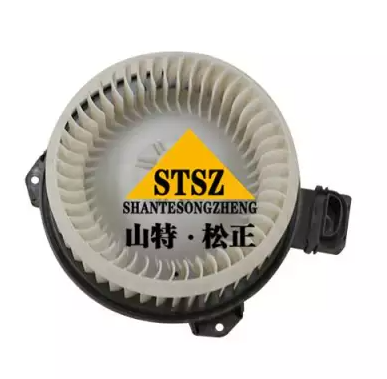

风扇马达总成ND116340-3860适用于PC200-7挖掘机，空调鼓风机

风扇马达总成ND116340-3860适用于PC200-7挖掘机，空调鼓风机

CYLINDER-HYDRAULIC

ITEM PART NO. DESCRIPTION

1 15232133 HOIST CYLINDER

2 9019955 TUBE ASSY

3 15232135 END ASSY

4 9014200 BUSHING

5 9014362 RING-BACKUP

6 9014593 O RING

7 9256605 WIPER

8 9014129 RING-WEAR

9 9270712 SEAL

10 9354243 LOCK NUT

11 15232053 T SEAL RING

12 15232134 TUBE

13 9431967 SCREW

14 15232128 TUBE ASSY

15 9014301 RING-PISTON

16 9014132 RING-WEAR

17 9256603 WIPER

18 9014130 RING-WEAR

19 9272943 SEAL RING

20 9019958 TUBE

21 9014131 RING-WEAR

22 9132790 O RING

23 9014363 RING-BACKUP

24 9015489 BASE ASSY

25 271568 BOLT

26 9411010 FITTING-GREASE

HYDRAULIC CONTROL VALVE

ITEM PART NO. DESCRIPTION

1 9264847 VALVE ASSY

2 9410967 O RING

3 274252 O RING

 HYDRAULIC CONTROL VALVE LINKAGE

ITEM PART NO. DESCRIPTION

1 103385 COTTER PIN

2 103498 PIN

3 108580 LOCK WASHER

4 102635 NUT

6 179847 BOLT

7 114496 NUT

8 9169494 CLEVIS

9 179837 BOLT

10 179843 BOLT

11 9060202 WASHER-HARDENED

12 179841 BOLT
