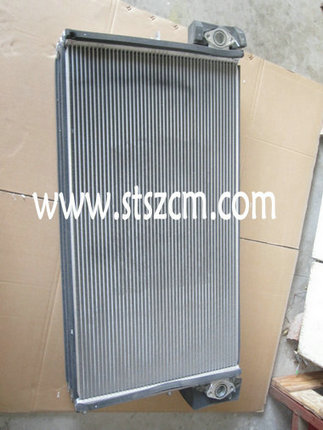

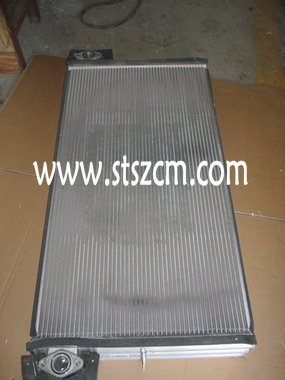

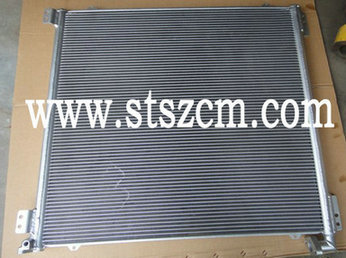

河北挖掘机PC200-7液压油冷却器20Y-03-31610，冷却系统配件

河北挖掘机PC200-7液压油冷却器20Y-03-31610，冷却系统配件

STEERING SYSTEM RELIEF VALVE

ITEM PART NO. DESCRIPTION

1 15013717 VALVE-ACCUMULATOR

2 9410967 O RING

3 9058246 RING

4 9058245 RING

5 444698 PLUG

6 9036136 O RING

7 9031075 POPPET

8 9034127 O RING

9 9031299 O RING

10 9038666 RING-BACKUP

ELECTRICAL CABLES

ITEM PART NO. DESCRIPTION

1 15226158 BATTERY

2 9350197 CABLE-INTER BATTERY

3 693772 SWITCH-PRESSURE

4 2460404 SWITCH-PRESSURE

5 15001878 ALARM-REVERSE

6 15013316 SOLENOID-24V START

7 9079062 DIODE-BLOCK

ELECTRICAL LIGHTING SYSTEM

ITEM PART NO. DESCRIPTION

1 15232900 HEADLAMP ASSY

2 15265363 BULB

3 9076850 FLOOD LIGHT

4 9374208 BILB

HYDRAULIC LINES

ITEM PART NO. DESCRIPTION

1 116453 ELBOW

2 179841 BOLT

3 179860 BOLT

4 179883 BOLT

5 179885 BOLT

6 9016048 CONNECTOR ASSY

7 9037136 CONNECTOR

8 9067616 TEE-BULKHEAD

9 9183228 CONNECTOR

10 9183250 TEE

11 9402706 CONNECTOR

12 9409981 FLANGE-SPLIT

13 9409983 FLANGE-SPLIT

14 9409985 FLANGE-SPLIT

15 9410286 ELBOW

16 9410967 O RING

17 9410969 O RING

18 9410971 O RING

19 15260091 HOSE ASSY

20 15004089 HOSE ASSY

21 15004134 HOSE ASSY

22 15004303 HOSE ASSY

23 9402869 ELBOW

24 9270000 WASHER-HARDENED

25 9129560 HOSE ASSY

26 9179585 STUD

27 9156021 GASKET

28 103329 LOCK WASHER

29 103028 NUT

30 102635 NUT

31 108580 LOCK WASHER

32 179850 BOLT

33 179891 BOLT

34 9012209 ELBOW
